Warm Tip：

1. The Router not support spain Digi SIM Card.

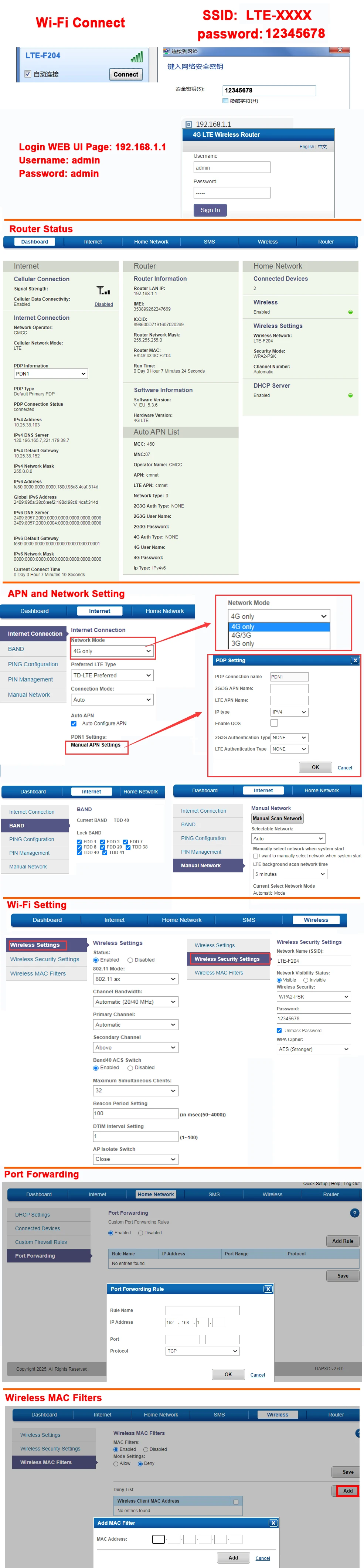

2.After inserting the SIM card, if the router is not connected to the Internet, you need to log in to the WEB UI page to configure the APN information. You can access the Internet only after the configuration is correct.

3.This device does not support American SIM cards

FAQ:

Q: My router's Internet speed is slow, how can I improve it?

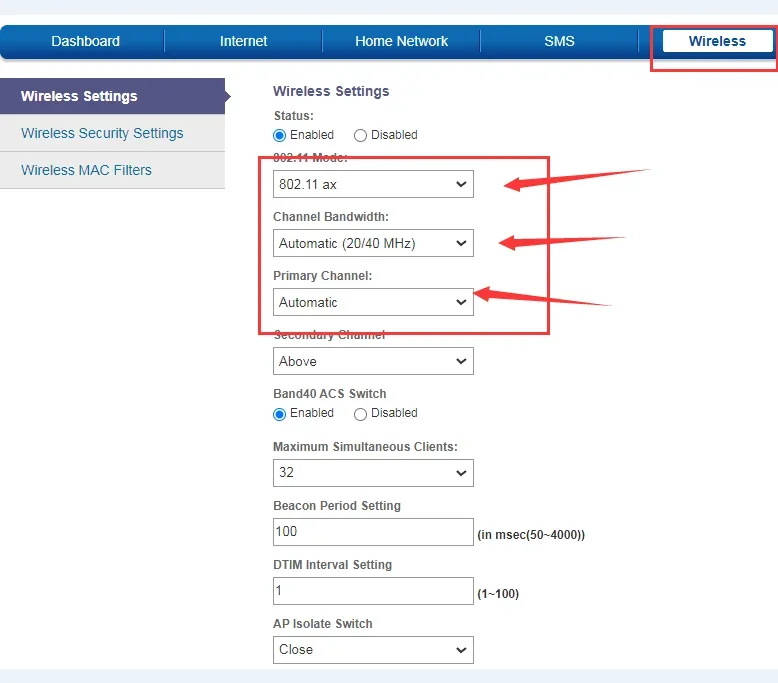

A: Buyers can log in to the WEB UI page and adjust the network mode of the router, which is recommended to be set to "4G Only". If indoors, buyers are advised to place the router in a position suitable for receiving signals.

Frequency Band：

EU Version

4G LTE FDD:B1/B3/B7/B8/B20(2100/1800/2600/900/800MHZ)
4G LTE FDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)
3G WCDMA:B1/B8(2100/900MHZ)
2G GSM:B3/B8(1800/900MHZ)

Applicable to Europe, Africa, Asia, all countries and regions, such as Russia, Israel, South Korea, Spain, Brazil, Ukraine, France, Italy, Netherlands, India, Nigeria, Switzerland, Kazakhstan, Poland, Ghana, etc.

Description：

KuWFi C940 is a desktop WiFi 6 router with stable WiFi signal coverage. The 100M Ethernet port is suitable for most Home use scenarios, equipped with a SIM card slot, AC/DC power supply, supports 2.4Ghz, IPV6/IPV4 and 10 devices connected at the same time, making indoor WiFi coverage easier.

Features:

CAT4 4G LTE Router

The Router provide a Nano SIM Card Slot. After inserting the SIM card and logging in to the WEB UI to configure the APN information, the SIM card signal can be converted to Wi-fi signal.4G LTE transmission rate up to 150Mbps(DL) / 50Mbps(UL).

300Mbps 2.4GHz Wirelee Wi-Fi

This router provides only 2.4Ghz Wi-Fi signals. 2.4GHz Wi-Fi rates up to 300Mbps.

Support Three Working Modes

(1)AP Mode:

Connect the upper-layer network to the WAN port of the router through a network cable to provide the Internet for the router. Users can choose to connect to the router's Wi-Fi signal or LAN port to provide network for other devices.

(2)4G to Wi-Fi Signal Mode:

After inserting a SIM card, log in to the WEB UI to configure correct APN information for the SIM card. It will convert the SIM network signal into a Wi-Fi signal.

(3)4G to Wired Mode:

When the router successfully connected to the SIM card's 4G network, the user can provide the network to other network devices through the LAN port.

4Pcs Non-detachable External Antennas

4pcs external antennas provide more stable and better signal transmission,include 4G LTE antennas and 2.4Ghz Wi-Fi antennas.

With 10/100 Ethernet Port

The Router with 1x 10/100 Mbps Ethernet port.To meet the needs of different users, Ethernet ports are provided, which can be used in a variety of scenarios.

Support 10 User/Devies Connect at the same time

The router supports up to 10 simultaneous users/devices, allowing your friends or family to connect to your router.Also smart devices in the home can connect to this router.

Plug and Play

When you insert the SIM card, you can instantly access the Internet anytime and anywhere. (Some SIM cards need to log in to the Web UI of the router and configure the APN information before they can access the Internet.)

Support for multiple devices

It can connect to mobile phones, televisions, cameras, computers, etc.Solve the problem that devices need network.

Specification:

CPU: ASR1803 Series +AIC8800DW
Flash: 64Mb
RAM: 256Mb
Wi-Fi Frequency: 2.4GHz
Wi-Fi Standards: IEEE802. 11 b/g/n/ax
Wi-Fi Access Rate: 2.4Ghz WiFi up to 300Mbps
CAT4 4G LTE Transmission Rate: Up 150 Mbps(DL)/Up 50Mbps(UL)
External Antenna : 2.4Ghz Wi-Fi Antenna and LTE Antenna(Non-detachable)
Nano SIM Card Slot: 1* 4FF SIM Card Slot
USB Port: Only for upgrade the 4G modem
LAN Port: 1x 10/100 Mbps
DC Power: DC 12V/1A
Working Temperature: -10°C to 45°C
Storage Temperature: -20°C to 60°C
Operating Humidity: 10%~90% (no condensation)

Package Listing:

1x CAT4 4G LTE Router
1x DC 12V Power Supply
1x Ethernet Cable
1x User Manual
